The Burj Khalifa, located in Dubai, UAE, is an engineering marvel and the tallest building in the world. Standing at an astonishing 828 meters (2,717 feet), this iconic skyscraper redefines structural possibilities. It was designed by Skidmore, Owings & Merrill (SOM) and engineered by Bill Baker, who played a crucial role in its structural system.
From a structural engineering perspective, constructing such a tall skyscraper presented numerous challenges, including wind resistance, foundation stability, material strength, and vertical load distribution. This case study explores how engineers overcame these challenges to create one of the most remarkable structures in modern history.
Structural Design Overview:-
The structural system of the Burj Khalifa is based on the buttressed core system, an innovative design that allows extreme heights while maintaining stability. The building has a Y-shaped floor plan, which provides natural stability against lateral forces, especially high-speed winds and seismic activity.
1. Buttressed Core System:-
The buttressed core system consists of a central reinforced concrete core supported by three wing structures extending outward. These wings act as a bracing mechanism, transferring loads efficiently to the foundation. The benefits of this system include:
- Enhanced stability against wind and seismic loads
- Reduced need for excessive steel reinforcements, making the structure cost-effective
- Ability to reach greater heights compared to traditional skyscraper designs
2. Y-Shaped Floor Plan:-
The tripod-like design was inspired by the Hymenocallis flower, ensuring a stable structure by distributing loads symmetrically. This floor plan reduces wind-induced vibrations and enhances the overall efficiency of the tower.
3. Foundation and Soil Stability:-
Since Dubai’s soil consists of weak sandstone and siltstone layers, engineers had to design a robust foundation system:
- A 3.7-meter-thick reinforced concrete raft foundation spreads the load evenly.
- 192 deep piles, each 50 meters long, were driven into the ground to anchor the structure.
- High-performance concrete (C80 and C60 grade) was used to resist extreme loads and environmental conditions.
Key Structural Engineering Challenges and Solutions:-
1. Wind Load Resistance:-
Wind-induced vibrations pose a major risk in tall buildings, potentially causing structural instability and discomfort for occupants.
Solutions:
- Aerodynamic design: The tapered shape and setbacks at different heights disrupt wind vortices, reducing oscillations.
- Wind tunnel testing: More than 40 wind tests were conducted to optimize the structure’s design.
- Damping system: The structural mass and design naturally absorb wind energy, reducing swaying.
2. Vertical Load Distribution:-
With an overall weight of over 500,000 tons, ensuring proper load distribution was essential.
Solutions:
- The buttressed core system effectively distributes gravity loads.
- The high-strength concrete core supports vertical and lateral loads efficiently.
- Jump-form construction was used to ensure uniform concrete placement and load-bearing efficiency.
3. Material Selection for Strength and Durability:-
Burj Khalifa had to withstand extreme temperature variations, from 50°C (122°F) in summer to cooler conditions at higher altitudes.
Solutions:
- C80 and C60-grade concrete was used for the main structure to handle compression loads.
- Structural steel was used in the spire to reduce the building’s overall weight.
- Heat-resistant materials were incorporated to withstand Dubai’s harsh climate.
4. Seismic and Differential Settlement Considerations:-
Though Dubai is in a low-seismic zone, minor tremors and differential settlement were still concerns.
Solutions:
- The deep-pile foundation system minimizes uneven settlement.
- The buttressed core design ensures flexibility to absorb minor seismic movements.
- A real-time monitoring system was installed to detect any structural shifts.
Innovative Construction Techniques:-

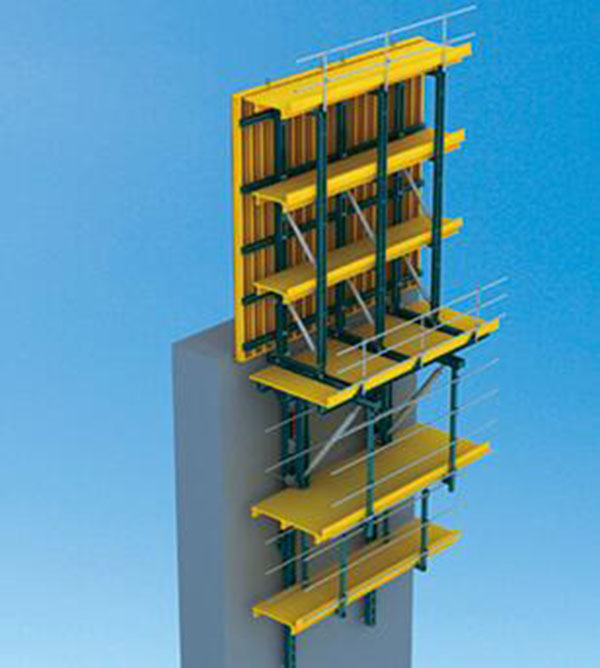

Jump-Form Construction:-
The jump-form system is an advanced construction technique used for high-rise buildings, particularly for core walls and shear walls. It involves a self-climbing formwork system that moves upward as each floor is completed, significantly improving efficiency and safety.
How It Works:
- Initial Setup: The formwork is anchored to the completed lower section of the structure.
- Concrete Pouring: High-strength concrete is poured into the formwork to create the vertical elements.
- Curing Time: The concrete is allowed to cure, reaching a sufficient strength to support the next phase.
- Hydraulic Lifting: Hydraulic jacks lift the formwork system to the next level, eliminating the need for cranes.
- Reinforcement and Repetition: Reinforcement bars are placed, and the process repeats until the desired height is reached.
Advantages of Jump-Form Construction:
- Faster Construction: The self-climbing system allows continuous work without waiting for scaffolding adjustments.
- Improved Safety: Workers remain inside a protected platform, reducing fall risks.
- Better Structural Quality: Ensures uniform concrete placement and reduces inconsistencies in vertical structures.
- Cost-Effective: Reduces labor and crane dependency, making construction more efficient.

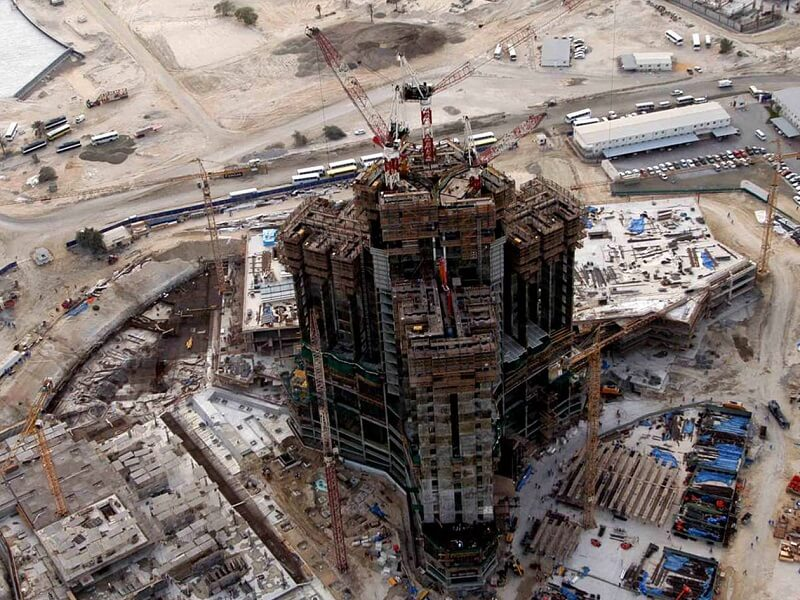

This method played a vital role in constructing the Burj Khalifa’s central core, allowing for rapid and precise building progress.
Cooling Measures:-
Since Dubai’s high temperatures could lead to premature concrete curing and cracks, special cooling techniques were implemented:
- Ice-cooled concrete: Chilled water and ice were added to the concrete mix to slow down curing, reducing the risk of cracks.
- Night-time pouring: Concrete was poured at night to avoid extreme daytime temperatures.
- Insulated formwork: Special insulated molds were used to maintain consistent curing temperatures and prevent thermal shock.
High-Performance Elevators:-
The Burj Khalifa features one of the world’s most advanced elevator systems, designed for speed and efficiency:
- Evacuation mode: In case of emergencies, special elevator shafts can be used to evacuate people safely.
- Double-deck elevators: These carry more passengers per trip, reducing waiting times.
- Speed of 10 m/s (36 km/h): One of the fastest elevator systems globally.
- Destination control system: Uses smart algorithms to assign elevators efficiently, reducing congestion.
Structural Innovations in the Spire:-
The spire adds 244 meters to the building’s height and houses telecommunications and mechanical systems. Due to wind load concerns, a structural steel framework was chosen instead of concrete, ensuring a lightweight yet durable structure.
FAQ’s
1. What makes the Burj Khalifa’s structure unique?
The buttressed core system, Y-shaped design, and advanced material selection make it one of the most stable and wind-resistant skyscrapers in the world.
2. How does the Burj Khalifa withstand strong winds?
The tower’s aerodynamic shape and setbacks at varying heights disrupt wind vortices, preventing excessive swaying.
3. What foundation system does Burj Khalifa use?
It uses a 3.7-meter-thick reinforced concrete raft supported by 192 deep piles (50m each) to anchor the structure.
4. What materials were used in the construction of Burj Khalifa?
The tower primarily consists of high-strength concrete (C80/C60) and structural steel in the spire to reduce weight.
5. How does Burj Khalifa resist earthquakes?
Despite being in a low-seismic zone, the tower features deep pile foundations and a flexible core design that absorbs minor tremors.
Conclusion:-
The Burj Khalifa is a landmark achievement in structural engineering, pushing the limits of height, stability, and materials. Through innovative design solutions, including the buttressed core system, high-performance concrete, and aerodynamic shape, engineers successfully tackled challenges associated with extreme heights. The engineering marvel serves as an inspiration for future skyscraper projects, setting a benchmark in modern structural engineering.
